Versatility
Versatility is one of the many benefits ITAMCO offer our customers. Whether you need gear production, 3D metal printing, or a complete gearbox build we can accomplish the job for you. Below you will find a list of our ever-expanding capabilities:
Download our Capabilities
Fill out the form below to download ITAMCO's capabilities.

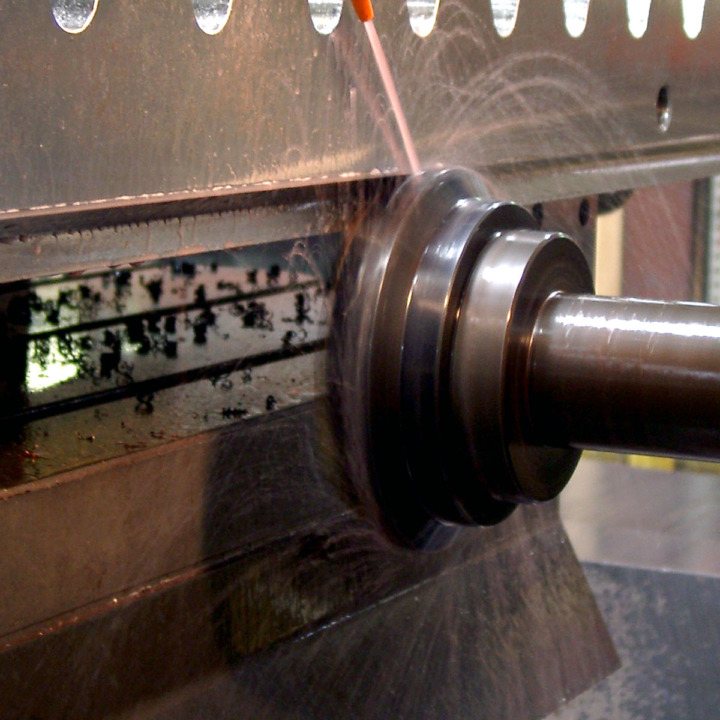

Precision Machining
Specializing in prototyping, serial production machining, and project management. ITAMCO’s versatility demands innovative manufacturing processes and advanced technology.

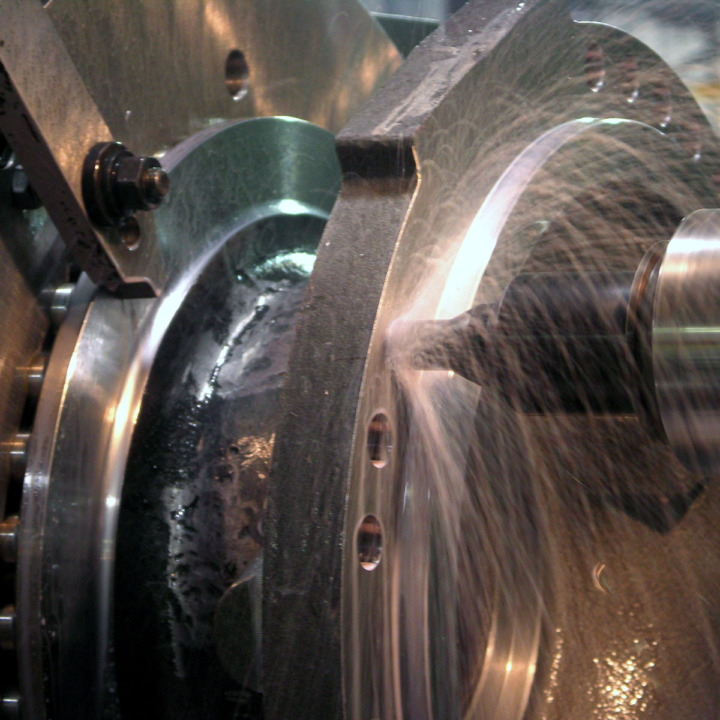

Precision Boring
Size Capability:
X = 120" or 3050mm
Y = 90" or 2280mm
Z = 96" or 2450mm
Vertical Machining
Size Capability:
X = 80" or 2050mm
Y = 50" or 1270mm
Z = 50" or 1270mm
Horizontal Machining
Size Capability:
X = 120" or 3050mm
Y = 90" or 2280mm
Z = 96" or 2450mm

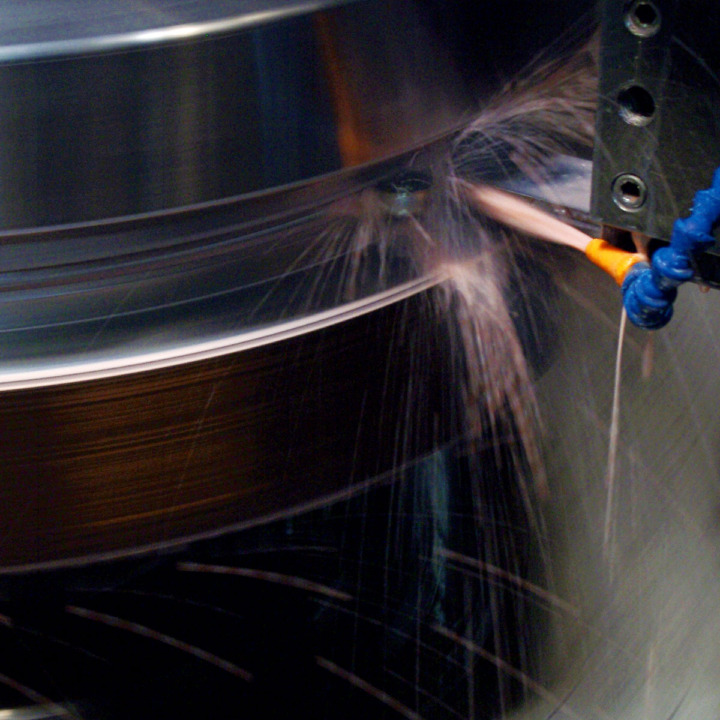

Turning
Size Capability:
D = 30" or 762mm
L = 84" or 2133mm
Vertical Turning
Size Capability:
D = 120" or 3000mm
L = 90" or 2300mm
O.D. Grinding
Size Capability:
D = 16″ or 406mm
L = 72″ or 1850mm
I.D. Grinding
Size Capability:
D = 24″ or 600mm
L = 18″ or 450mm
Coordinate Measuring
Size Capability:
X = 156″ or 4000mm
Y = 100″ or 2500mm
Z = 60″ or 1525mm
Open Gearing
ITAMCO is considered by many to be one of the most unique gear manufacturing companies in the world. Our capabilities range from large mining gears to high precision ground gears.
Gear Shaping
Size Capability:
D= 72" or 1850mm
L= 15" or 400mm

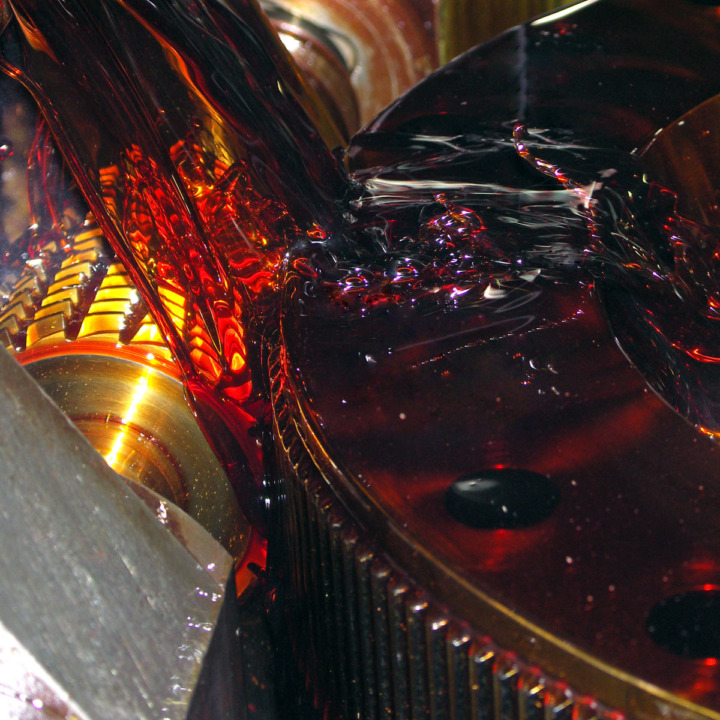

Gear Hobbing
Size Capability:
D= 78" or 2000mm
L= 48" or 1225mm
Gear Gashing
Size Capability:
D= 78" or 2000mm
L= 48" or 1225mm

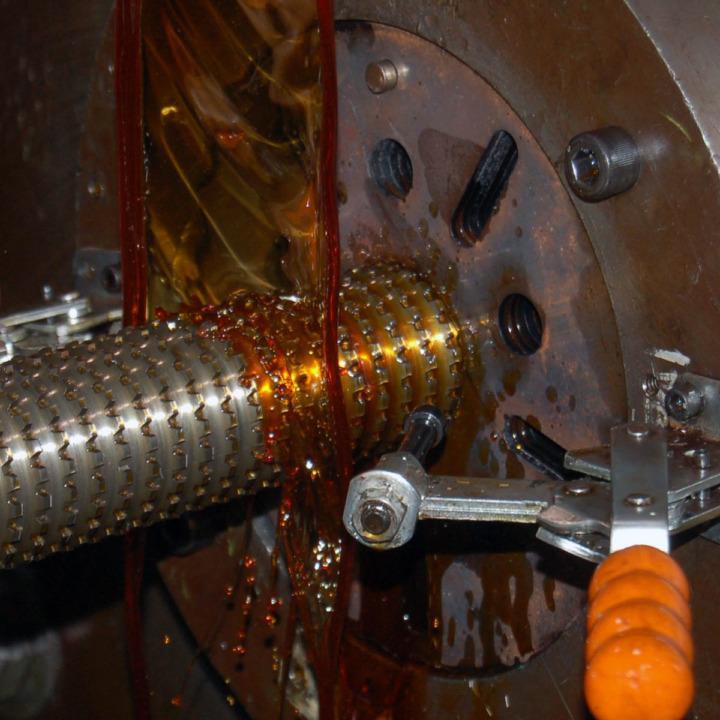

Broaching
Size Capability:
Up to 50 ton

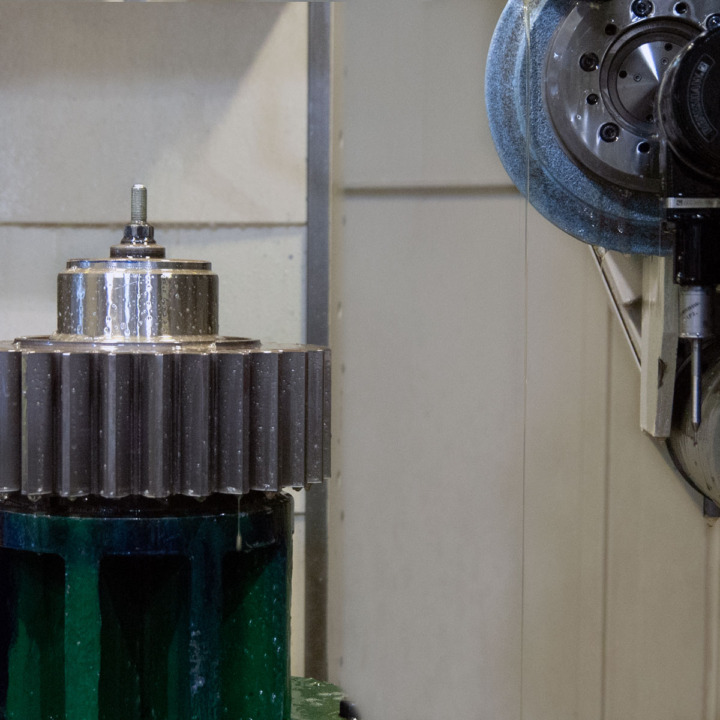

Gear Grinding
Size Capability:
D= 156" or 4000mm
L= 70" or 1750mm

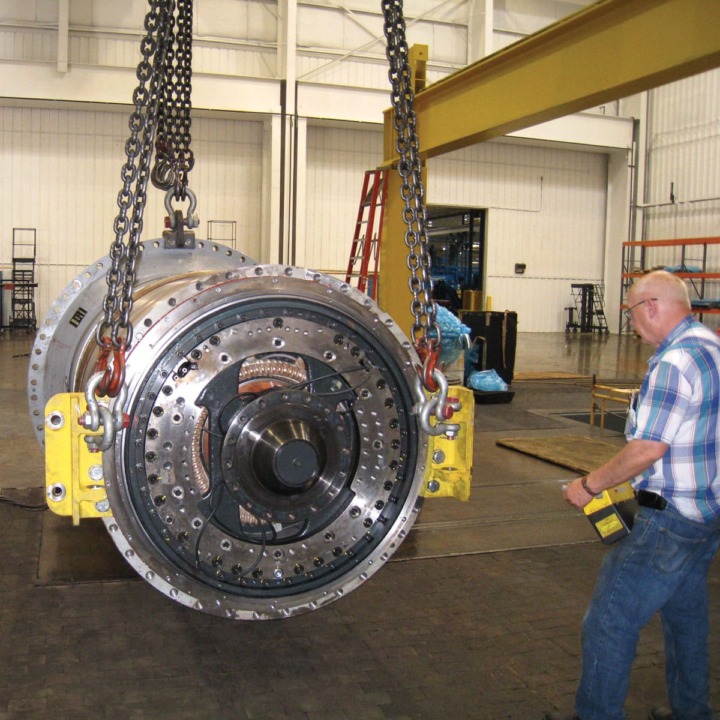

Large Part and Gearbox Assembly
ITAMCO’s large-scale assembly facility is located in Argos, IN, conveniently located for easy rail or major OTR (over the road) transportation. This 385,000 sq.ft. facility is equipped with cranes up to 110 tons and expansive teardown, rebuild, and new gear drive manufacturing cells.
- 110 ton crane capacity
- 60 foot ceiling height in assembly hall
- Electric soft start for motors up to 6000 HP

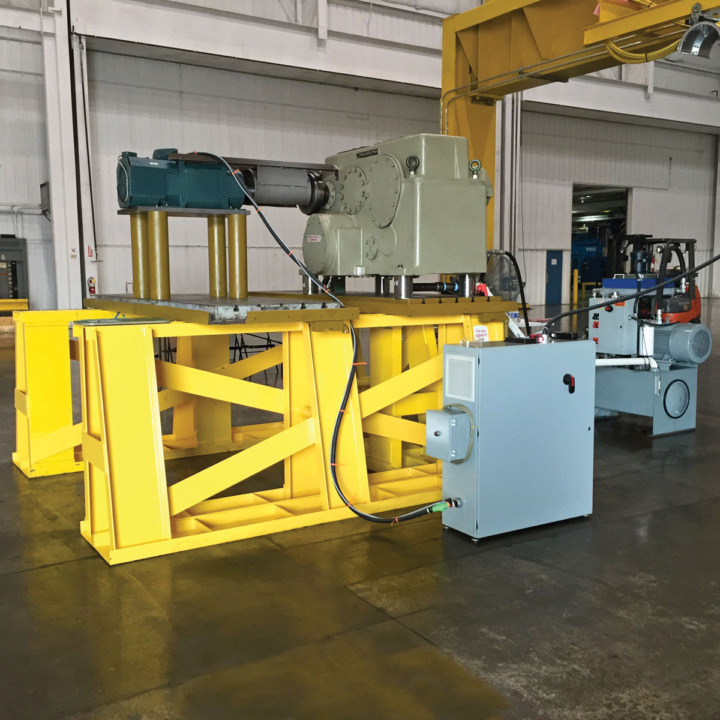

- Gearbox spin test stands
- Temperature, noise, and vibration monitoring
- Electrical and lubrication systems assembly
- Gearbox tear down, kiss grinding, and rebuild services
- Custom and serial production volumes
385,000 sq. ft.
60 Foot High Bays
110 Ton Crane Capacity
Finishing and Non-Destructive Testing
ITAMCO offers extensive finishing and non-destructive testing capabilities to comply with your specifications.
Shot Peening
Size Capability:
20' x 20' Blast Grit Room
60" Diameter Shot Peening
Multi Specification Compliant
Part Cleaning
Featured Capability:
Ultra Sonic Cleaning
Large Conveyor and Vestibule Washers
Isotropic Surface Finishing
Featured Capability:
REM Process
Hardness Testing
Capability:
All Rockwell Scales
Leeb (portable)
Brinell
Non-Destructive Testing
Featured Capability:
Dye Penetrant
Magnetic Particle Inspection (MPI)
Ultrasonic Testing (UT)
Surface Temper (Nital Etch)
Surface Roughness Testing (Portable Profilometer)
Quality
ITAMCO has produced high-quality, precision-machined components for our customers since 1955. To maintain this standard of excellence, we have continually refined our quality systems to meet the demands of our clients.
ITAMCO’s quality systems are registered to the ISO 9001:2015 standard. Click here to view our certificate. Our quality control labs feature state-of-the-art Zeiss CMM’s with measuring envelopes of up to 160″. All CMM’s are equipped with state-of-the-art gear inspection capabilities. These machines allow us to gather and analyze quality data on large machined parts and geared or splined products.
We’ve also added several FaroArm-Platinum portable CMM’s to expand our inspection capabilities beyond the quality control lab. Our certified operators can now inspect or perform CAD-to-Part-analysis on parts anywhere the customer requires it while maintaining accuracy within +/- .0005″.
Zeiss MMZ B CMM
Zeiss Accura CMM
M and M Gear Analyzer
Zeiss Mauser CMM
FaroArm-Platinum
ITAMCO's Quality Policy:
To provide products and services that meet or exceed customer expectations and to achieve customer satisfaction by the continuous improvement of our Quality Management system.

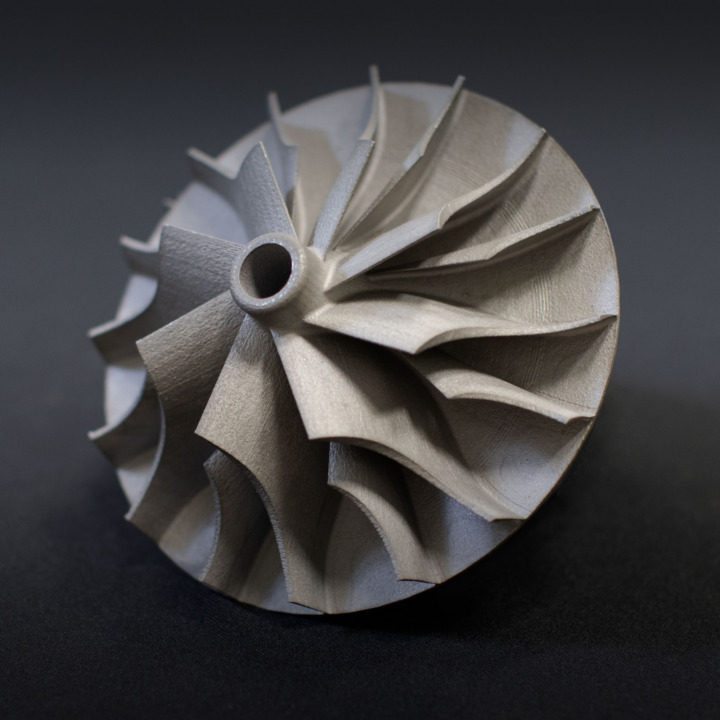

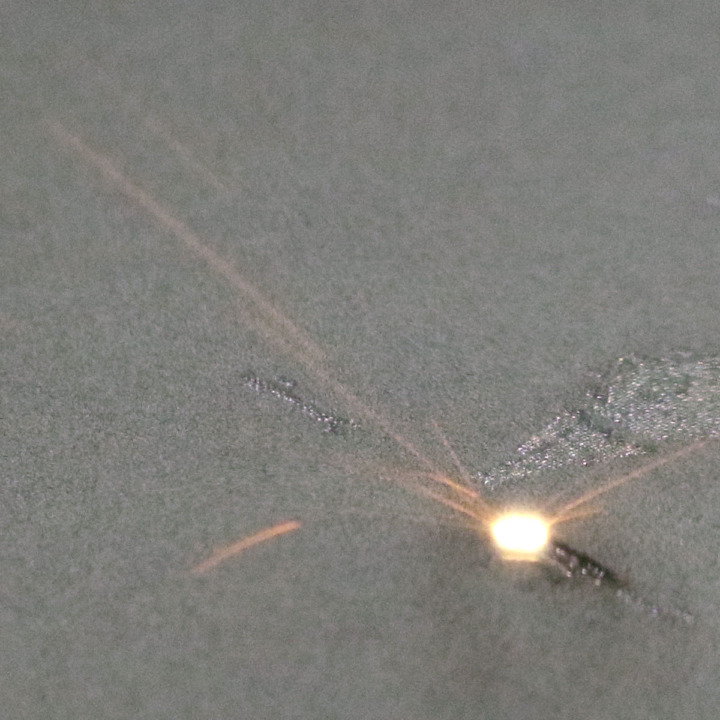

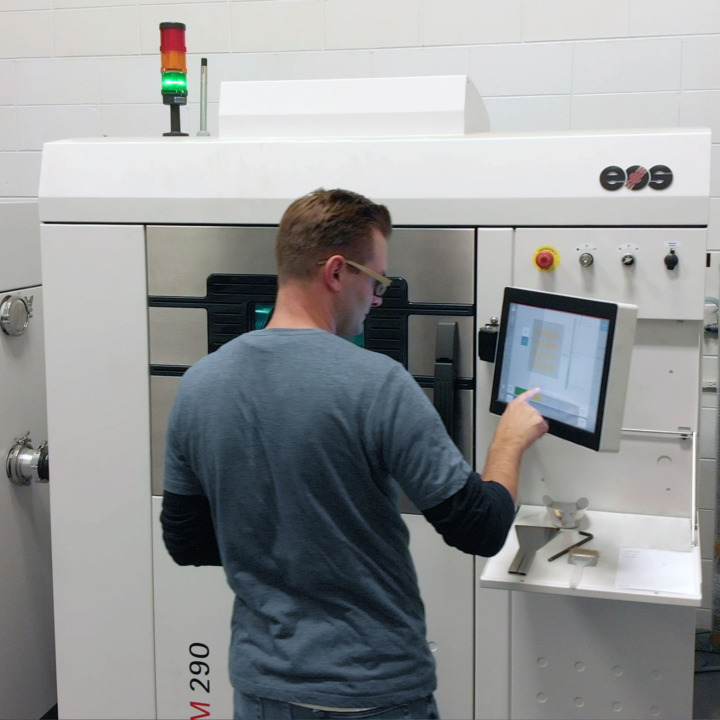

Additive Manufacturing
ITAMCO can handle your complete Additive Manufacturing part from start to finish.
Building Volume
250 mm x 250 mm x 325 mm
(9.85 x 9.85 x 12.8 in)
Laser Type
Yb-fiber laser; 400 W
Precision Optics
F-theta-lens; high-speed scanner
Scan Speed
up to 7.0 m/s (23 ft./sec)
Focus Diameter
100 μm (0.004 in)
Metal Options
TI164, 316L Stainless Steel, AISI10MG, Ferrium C64 Steel, 17-4PH Stainless Steel, INCONEL718, and more
